1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR.
Application:
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Vehicle, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Features & functions:
It¡¯s a high definition thin-sized CCTV camera with excellent night vision.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Small size make it easy to install and conceal.Full TV system. Applicable worldwide.
Specification:
* SENSOR £º1/3 CMOS
* SYSTEM£º NTSC£º656¡Á492 PAL£º768¡Á576
* HORIZONTAL RESOLUTION£º520TVL move higher resolution
* Exellent night vision of 0.008Lux/F2.0
* LENS & VIEW ANGLE £º3.6mm F2.0 / 120 ¡ã Pinhole lens
* Dimensions(L*W*H)£º21mm*14mm*13mm(very thin)
* POWER SUPPLY£º DC3.3-6V 60mA
The package:

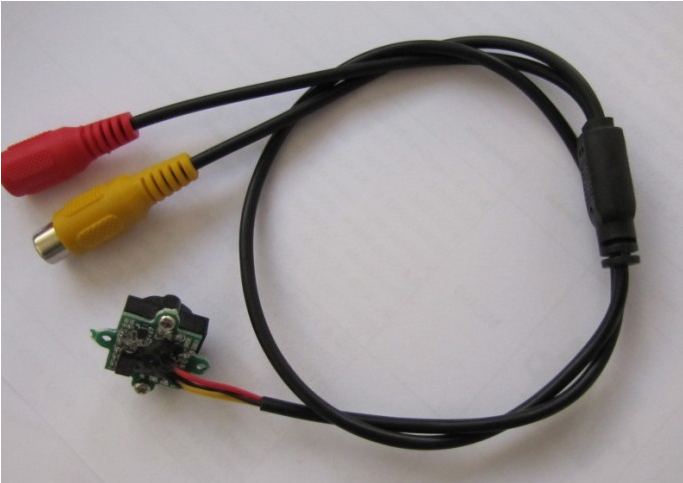

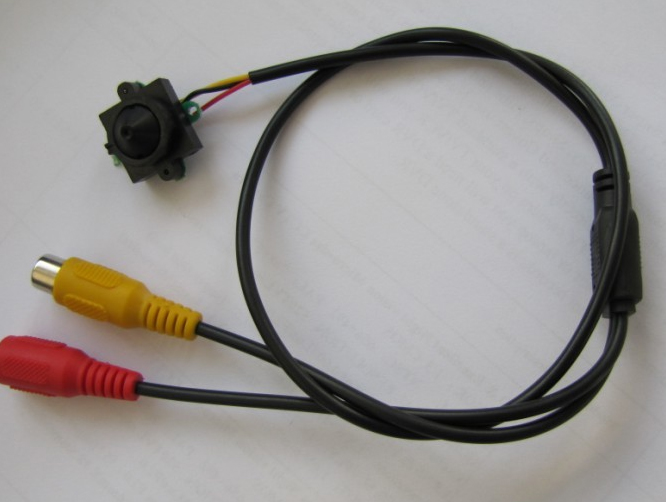

1*Mini camera ; This camera lens is cone.
1* cable
1*AC adapter
|
