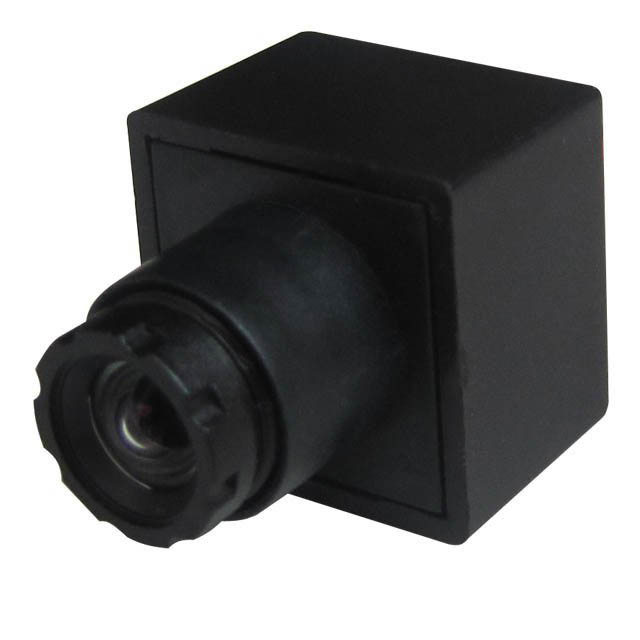

Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera

Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera
Condition:New
Model: MCSD-91A

List price:

Your price:



Main Features:

*  90 degree wide view angle,3.6-24v wide voltage
*  Small Size: easy to install into narrow room and slim tube, etc.;
*  Easy Installation: Simply place it at any desktop with its detachable base station, or screw it on the wall with the detachable stand;
*  Camera stand can rotate 360 degrees, all-round monitoring
*  High resolution, high sensitivity, high SNR;
*  Day & night dual mode auto switch;
*  Low Illumination, Low Current and power consumption;
*  CMOS sensor generation IV+DSP chip offer true color & HD video.


Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera
Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera
Plug and Play 360deg turning stand-90Deg view anlge wide voltage 480TVL 1/4 CMOS mini camera

Usage:

1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

Specifications:

PICK UP ELEMENT Single chip 1/4CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:720(H)¡Á480(V) PAL:720(H)¡Á576(V)
SENSOR DIMENSION 3.584mm(H)¡Á2.688mm(V)
HORIZONTAL RESOLUTION Approximately 480TV Lines
SENSITIVITY 0.05Lux/F1.2
LENS & VIEW ANGLE F1.2 / 90¡ã
S/N RATIO 48dB
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
WEIGHT 5G
SIZE(LXWXH) 15.5X15.5X20mm
WORK CURRENT DC12V: 45mA DC5V: 95mA
POWER REQUIREMENT DC:3.6V-24V
OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC ,less than 90% RH
Connection PIN1=>:Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT

Package contents :
* mini camerax1
* Stand x 1
* RCA or BNC Cable x1
* AC Adapterx1
