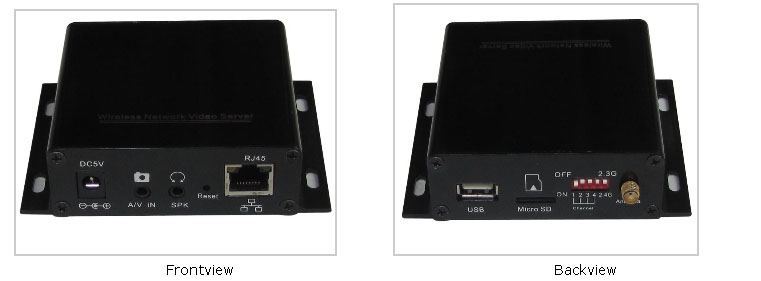

This wireless network video server is equipment for receiving 2.4GHz wireless audio & video and real time transmitting on Ethernet. The NVS offers a smooth video transmission and higher level of resolution, with high-performance SOC (ARM+DSP) specially designed for multimedia processing, and high performance operating system and sound video frequency compression algorithm. The NVS is available multiple ports for function expansion so as to meet your higher requirement; with the built-in WEB server, it can enhance the performance of the traditional monitoring system, and provide network connectivity for publishing monitoring image on a safe LAN or Internet. IP camera management, configuration, monitor, etc. is easy to operate through the Internet Explore(IE browser).  and the operation is rather simple and convenient.

Function introduction:

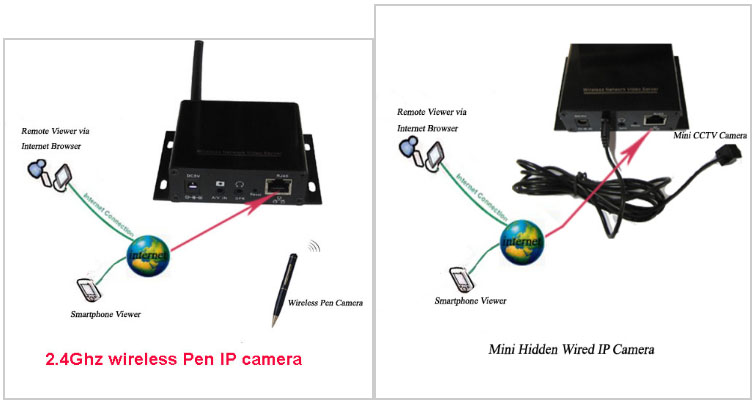

*  Support 2.4GHz wireless receiving (8 channels), constitutes wireless IP camera;
*  Support AV input of wired camera, constitutes wired IP camera;
*  Support D1, 2CIF, CIF, QCIF,(704*576、704*288、352*288、176*144) resolution;
*  Support H.264, MJPEG image compression encoding;
*  Support PTZ control, alarm I/O, two-way Talkback, third-class user rights, with perfect functions;
*  Support any PTZ protocol ; it can definite PTZ protocol document to upgrade and update;
*  Two-way voice Talkback, support external audio input and output;
*  Complete network protocol, support RTSP, VLC（PS/TS） Media Protocol;
*  Support the mobile phone for remote monitoring;
*  Support WIFI wireless transmission, support network search function and support WEP/WPA/WPA2 cipher mode;
*  Support front-end SD card for memory

Technical specifications:

2.4GHz Wireless Receiving
Receiving Frequency	ISM 2,360MHz~2,520MHz
Audio subcarrier frequency	Default：6.0Mhz Optional:6.5MHz
Channel	Support 8 channels
Receiving Sensitivity	≤ -85dBm
Antenna	50ohm SMA
AV INPUT
Video Input Level	1Vp-p@75ohm
Audio Input Level	1Vp-p@1Kohm
Power Supply output	DC5V
Compression standard
Video frequency compression standard	H.264/MJPEG
Compression output code rate	32K～4Mbps/1M～16Mbps
Audio frequency compression standard	G.711
Audio frequency output code rate	64Kbps
Image size	704*576；704*288；352*288； 176*144
	704*480；704*240；352*240
Frame Rate	1-30f/s
Function
2.4GHz wireless receiving	Support
AV input of wired camera	Support
Mobile phone monitoring	Support
Network protocol	PPPoE、DHCP、TCP/IP、HTTP、UDP、RTP/RTCP、RTSP、UPNP、SMTP、FTP、SIP、DDNS、DNS
Motion detection	Support
Area shield	Support
SD Card local storage	Support
With WIFI for optional (it is optional to use high power WIFI module)	Support encryption: wep64,wep128,wpa,wpa2
	Wireless power: 13dbm(54M) (high power module, wireless power: 20dbm/54M)
	Wireless distance: <=70m (high power module<=300M)
General specifications
Working temperature	-10℃～65℃
Working humidity	85%RH or less
Power source	DC5V/1A
Power consumption	<3W
Size (LXWXH)	7.5cm(L)x 10.5cm(W) x 2.9cm(H)
Weight	180g

Package:

1 * Wireless Network Video Server
1 * Adapter
1 * CD
