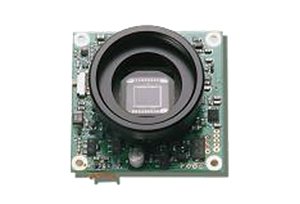

Watec WAT-902HB2S High-Res B/W Board Camera, 1/2" Interline Transfer CCD image sensor, 570 TVL Super High Resolution, 0.0003 Lux @ fl.4 (AGC High), Power Supply: DC +9.0~15V (12V+/-15%), Back light Compensation: ON .

Watec WAT-902HB2S Features:

*  Star Ultra low-light monochrome camera 570 lines high-resolution DC / VIDEO dual drive
*  Industrial Design specializes in dark environment monitoring
*  Matec WAT-902HB2S is a mine-specific camera
*  570 TV Lines Resolution
*  Low Light Sensitivity
*  Auto Gain Control
*  Back Light Compensation
*  1/2" CCD camera with Resolution of 570 TV Lines
*  Minimum Illumination: 0.0003 Lux @ fl.4 (AGC High)
*  Number of Pixels: EIA: 811 (H) X 508(V); CCIR: 795(H) X 596 (V)
*  Pick-Up Element: 1/2" B&W CCD Image Sensor
*  S/N Ratio: >46db (AGC OFF)
*  Lens Mount: "CS" Mount
*  AGC: ON/OFF- High/Low
*  Back light Compensation: ON
*  Power Supply: DC +9.0~15V (12V+/-15%)

Watec WAT-902HB2S Specifications:

Model	WAT-902HB2S (EIA)			WAT-902HB2S (CCIR)
Pick-up element	1/2 inch interline transfer CCD image senso
Number of total pixels	811(H) x 508(V)			795(H) x 596(V)
Number of effective pixels	768(H) x 494(V)			752(H) x 582(V)
Unit cell size	8.4μm(H) × 9.8μm(V)			8.6μm(H) × 8.3μm(V)
Synchronizing system	Internal
Scanning system	2:1 interlace
Video output	Composite Video, 1Vp-p, 75ohms, unbalanced
Resolution (H)	570TVL (Center)
Minimum illumination	0.0003x F1.4
S/N	More than 50dB (AGC=10dB,γ=1.0)
AE mode	Fixed	1/60, 1/100 sec.	1/50, 1/120 sec.
		1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec.
	EI	1/60 - 1/100000 sec.		1/50 - 1/100000 sec.
AGC	ON	HI: 5 - 50dB / LO: 5 - 32dB
	OFF	5dB
Gamma characteristics	γ≒0.45(ON) /γ=1.0(OFF)
Lens-iris	Video (Watec original arrangement)
Power supply	DC+12V±10%
Power consumption	1.92W (160mA)
Operating temperature	-10- +40
Storage temperature	-30- +70
Operating / Storage humidity	Less than 95% RH (Without condensation)
Lens mount	CS mount
Weight	Approx. 25g
