Specifications:
| Model |
WAT-621S |
| image sensor |
1/2" CCD |
| Sensing area(pixel) |
P440K |
| Synchronizing System |
Internal Synchronization |
Scanning system
|
2:1 |
video output
|
1Vpp-75¦¸ |
| Resolution (horizontal) |
480Lines |
| Minimum illumination |
0.1Lux F1.2(AGC High) |
| Gain control |
Automatic gain control (dB) ON=8~36 (Hl) 8~24 (LO) OFF=8
|
| S/N ratio |
50dB |
| Gray properties |
¦Ã¨P0.45/1.0 |
| BLC |
ON/OFF |
| AES EI:OFF |
1/50~1/100,000 sec.
EI:FL 1/120~1/100,000 sec. |
| MES |
(S)OFF(1/50),1/250,1/500,1/1000,1/2000,1/4000,1/10,000 |
| WB |
AUTO/Fixed /3200K,4200K,5100K,6300K |
| Auto Iris Lens |
VIDEO/DC |
| Mount |
CS |
| Working Voltage |
DC+10V~15V |
| working current (mA) |
190 |
| Storage Temperature (¡æ ) |
-30~+70 |
| Operating Temperature (¡æ ) |
-10~+40 |

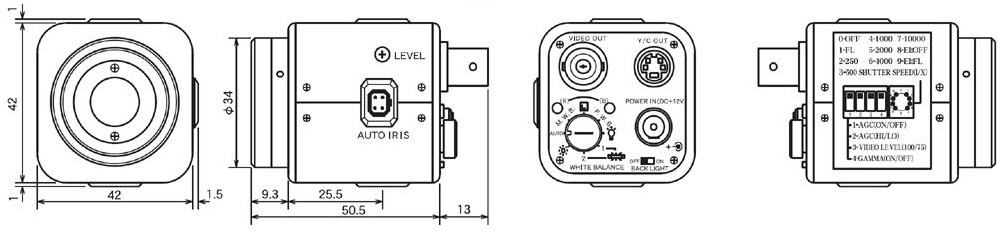

| Size W¡ÁH¡ÁL(mm) |
43.5x44x64.5 |
| Weight(G) |
160 |
|
