The Watec WAT-127LH camera is one of the smallest and lightest CCTV box cameras available on the market. This makes it all the more surprising that the manufacturer was able to incorporate into its tiny frame most of the features and functions found on larger and heavier cameras. These include a 1/2" CCD sensor, an auto iris function as well as a full complement of electronic controls. Working in concert, these allow the camera to produce visible images in light levels down to 0.0015 lux. This degree of low light sensitivity coupled with its incredibly small size makes it the camera of choice for residential or commercial applications looking for dependable yet minimally intrusive round-the-clock security monitoring.
The Watec WAT-127LH Monochrome Camera is perfect for most video application. Watec is the premier manufacturer of miniature cameras and the Watec WAT-127LH is no exception.
Ultra Compact & Lightweight Body
With a total length of only 2.7" and weighing less than 5 ounces, this is one of the smallest and lightest full featured CCTV box cameras available on the market.
Extreme Low Light Sensitivity
The combination of a 1/2" CCD, auto iris and a wealth of internal picture controls provide the camera with the ability to produce visible images in light levels as low as 0.0015 lux.
Watec Wat-127LH Features :
* Illumination High Resolution
* Power synchronization adjustment
* Internal sync. / line lock (AC24V) auto select
* DC12V / AC24V compatible
* Shutter speed control
* Flickerless mode
* Back light compensation
* AGC
* Video/DC iris auto-select
* Iris level control
* Phase control
* Effective pixels: 380k(N), 440k(P)
* Resolution: 570TVL
* Minimum illumination: 0.0015 lx. F1.4
* Gain control: AGC(HI:5-42dB)
* Back light compensation: ON
* S/N ratio: 50dB
* Shutter speeds: EI(1/60(N) or 1/50(P)-1/100,000), FL, OFF
* Weight: 140g
Watec WAT-127LH Specifications:
| Model |
WAT-127LH |
| CCD |
1/2¡å |
| Effective Pixels |
440K |
| Synchronizing System |
inter-sync Power synchronization |
| Scanning system |
2:1 |
| video output |
1Vpp-75¦¸ |
| Horizontal resolution |
570TVL |
| minimum illumination |
0.0015LuxF1.4(AGC High) |
| automatic gain control |
5~42dB |
| SNR |
50dB |
| gray properties |
¦Ã¨P0.45 |
| Backlight compensation |
ON |
| Auto electronic shutter |
Fixed electronic shutter OFF(1/50)
Flicker Filter F.L(1/120)
Auto electronic shutter EI(1/50~1/100£¬000sec) |
| Mount |
CS |
| Auto Iris Lens |
VIDEO/DC |
| Working Voltage |
DC+12V¡À10% |
| working current |
85mA(AC24V)
200mA(DC12V) |
| Storage Temperature |
-30¡æ~+70¡æ |
| Operating Temperature |
-10¡æ~+40¡æ |

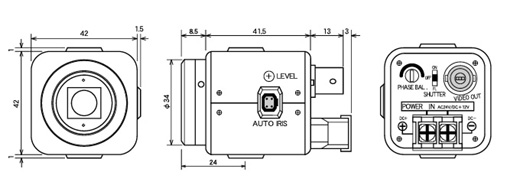

| outside dimensions |
43.5x44x67.5MM |
| Weight |
140g |
|
