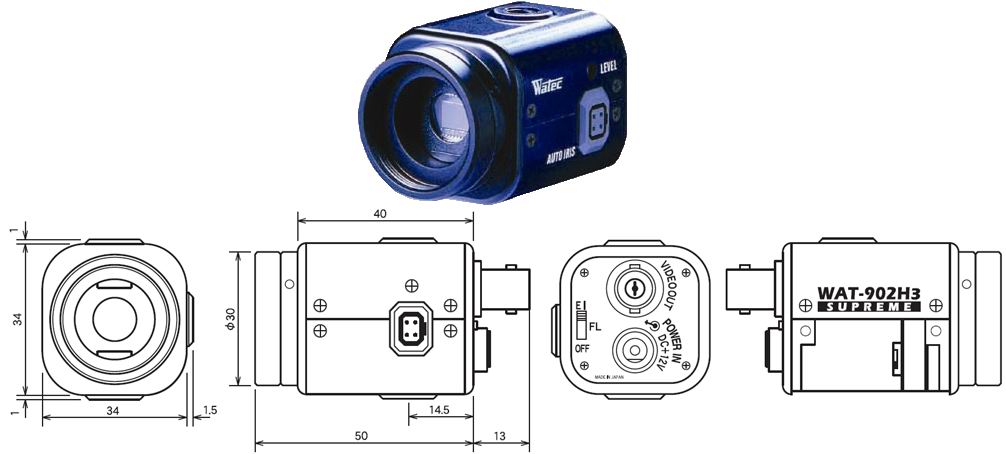

The Watec WAT-902H3 SUPREME 1/3" Super High Sensitivity Monochrome Camera offers super high sensitivity (near IR) and high resolution in an ultra compact camera. The Watec WAT-902H3 camera features a variety of internal controls designed to ensure image quality in various lighting environments including low-light conditions
Watec WAT-902H3 Camera Features:
* Watec WAT-902H3 1/3" CCD Camera * Effective Pixels (K) C440K, internal synchronization, * Scanning System: 2:1, * Video Output: 1Vpp-75¦¸, * Resolution (horizontal): 570LVL, * Minimum Illumination (Lux): 0.0005Lux F1.4 (AGC: High), * Watec WAT-902H3 good performance.
Watec WAT-902H3 CCD Camera Specifications:
Model |
WAT-902H3 |
Image sensor |
1/3" CCD |
Sensing area(pixel) |
C440K |
Resolution |
570LVL |
Minimum illumination |
0.0005Lux F1.4(AGC:High) |
Gain control |
High:5~50 Low:5~32 |
S/N ratio |
46dB |
|
¦Ã¨P0.45 |
Electronic Shutter (S) |
Fixed electronic shutter OFF£¨1/50£© Flicker Filter ( F.L) (1/120) AES EI£¨1/50~1/100£¬000sec£© |
Auto Iris Lens |
VIDEO/DC |
Lens mount |
CS |
Power supply |
DC+12V~¡À10% |
working current(mA) |
160 |
Storage Temperature (¡æ) |
-30~+70 |
Operating Temperature (¡æ ) |
-10~+40 |
Outside Size W¡ÁH¡ÁL(mm) |
35.5¡Á36¡Á58 |
Weight£¨G£© |
90 | |
