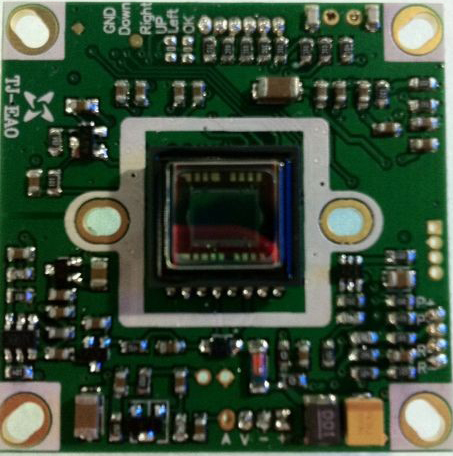

Product Description: * 540TVL 1 / 3 SONY CCD, High Picture Quality (3172+2096+409AK)
* Low illumination: 0.5Lux
* Next-chip DSP
* Lowest power consumption ( work current: 110mA)
* Support audio/double drive
* Size: 32*38mm
* Double board
| Imaging Sensor |
1 / 3 SONY CCD |
| TV System |
PAL/NTSC |
| Sync System |
Internal |
| Mini Illumination |
0.5 Lux |
| S/N Ratio |
¡Ý50dB |
| Electronic Shutter |
1/50~1/12,000second |
| Video Out |
Composite output 1.0Vp-p at 75 ohm |
| Gamma Correction |
>0.45 |
| Operation Temp |
-10¡ãC~50¡ãC |
| Dimensions |
32mmX38mm |
| Power |
DC 12V |
| Power current |
<110mA |
| weight |
45g | |
