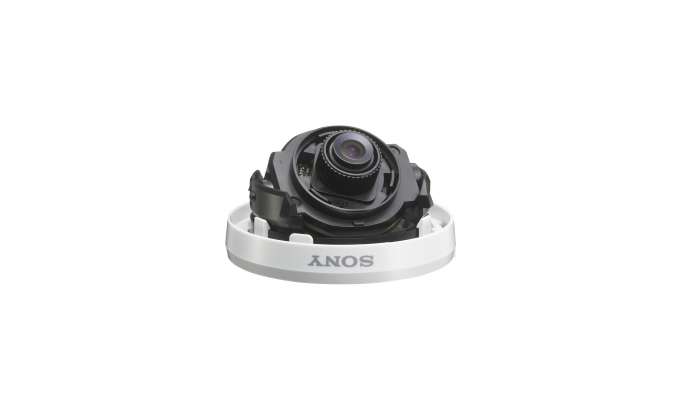

The Sony SSC-N11 is a high resolution analogue mini-dome security camera with a 1/3¡± Super HAD CCD II sensor, electrical Day/Night function, ATR-Lite, iBLC and a fixed focal length of 3mm.
With a horizontal resolution of 540 TV lines and high sensitivity, this cleverly designed compact camera is ideal for a wide range of applications ¨C achieving optimum surveillance even in difficult lighting conditions.
||1/3-type Super HAD CCDII|
|Number of effective pixels (H x V)
||440,000 pixels (752 x 582)|
||540 TV lines|
||More than 55 dB (AGC Off)|
||Color: 0.55 lx, B/W: 0.3 lx (F2.0, 50IRE); Color: 0.35 lx, B/W: 0.2 lx (F2.0, 30IRE)|
||ATW (2000K to 10000K)|
||Fixed focal lens|
|Horizontal viewing angle
|Minimum object distance
||Yes (Electrical D/N)|
||Yes (2D NR)|
|Back light compensation
|Automatic tone reproduction
||125 g (4.4 oz)|
||84 mm x 53 mm (3 3/8 inches x 2 1/8 inches)|
||DC12 V ¡À10%|
||Max. 0.9 W|
||-10 ¡ãC to +50 ¡ãC|
||-40 ¡ãC to +60 ¡ãC|
||20 % to 80 %|
||20 % to 95 %|
1.Compact and stylish design
A compact, stylish and discreet design that compliments any surveillance environment.
2.Super high resolution
With a horizontal resolution of 540 TV lines, the SSC-N11 produces detailed, sharp images.
3.Electrical Day/Night function
This ensures the camera is operating with the optimum sensitivity for both day and night conditions.
ATR-Lite (Adaptive Tone Reproduction) improves the ability to resolve detail where both high and low luminance areas exist in the same picture.
iBLC (intelligent backlight compensation function) can identify and compensate for areas in the image that are affected by strong light coming from a region in front of the camera e.g. a window. It will adjust exposure to retrieve detail in areas that would otherwise have been under-exposed.
ATW is Sony¡¯s white balance system. It automatically adjusts the image to give an overall neutral colour balance.
7. Easy viewing angle adjustment
Inside the protective dome, the camera has a three-way hinge that allows horizontal, vertical and swivel rotation. This provides a very high degree of flexibility, and allows the camera to be installed on vertical as well as horizontal surfaces.
