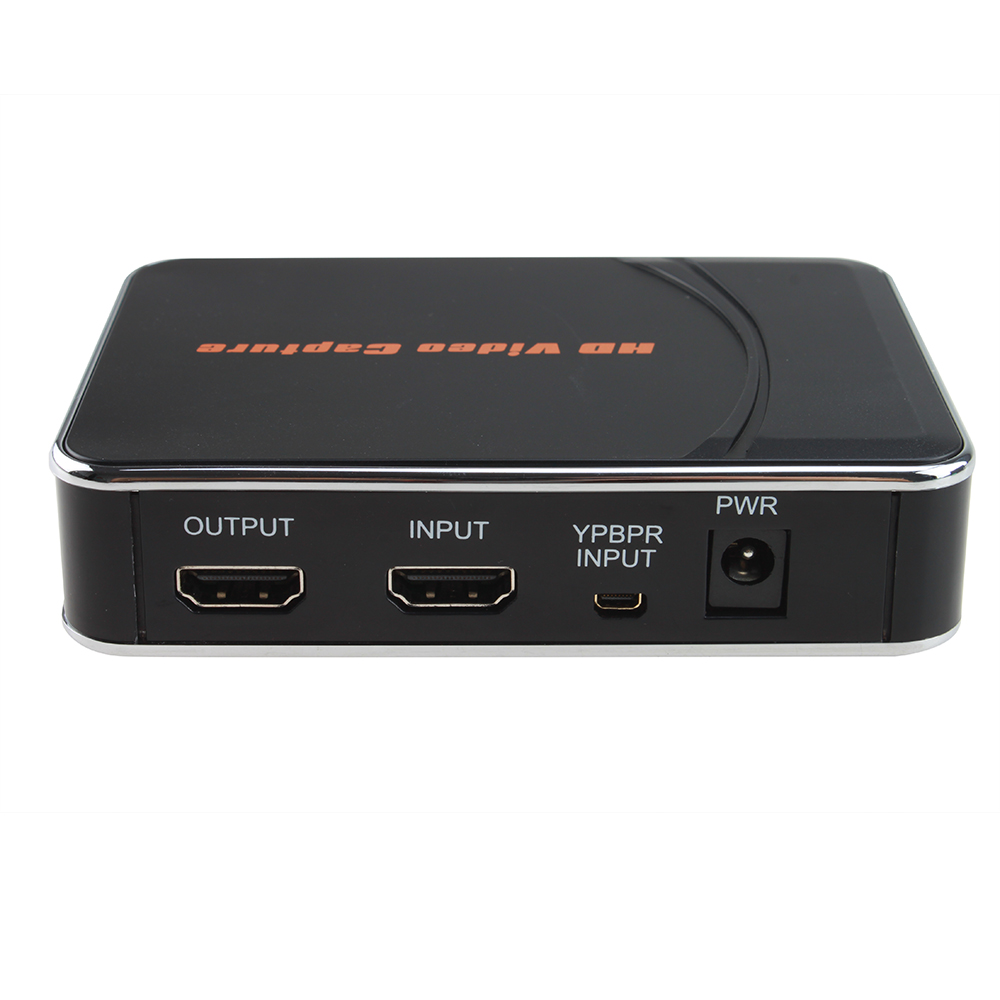

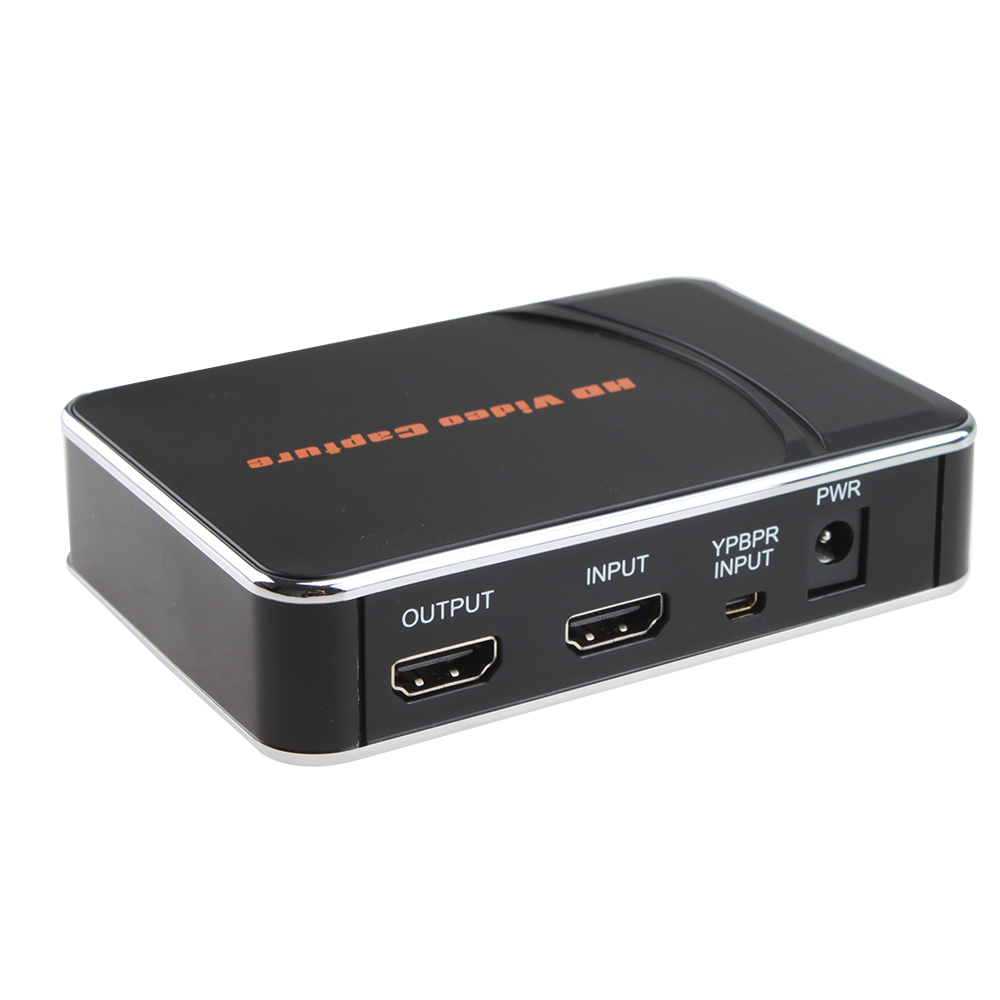

HD Video Capture 1080P HDMI YPBPR For XBOX 360
Features :
* 1080P recording with one click, no PC enquired. You only simple insert one USB Flash disk to get it anywhere, anytime.
* Bring it out of your room and share the gameplay and fun with your friends anywhere.
* Easy to use, no any set-up. You just click RECORD button to record your gameplay, and re-click to stop recording.
* With 1080P HDMI by through, you can play HD gameplay when you're recording it.
* With extral audio input, allows you record your own live voice from microphone with gameplay video together.
* NOTE: Before you record video, you have to Enable HDCP first.
Connection :
* Interface: USB 2.0 host for USB Flash disk or USB hard disk
* Video Input: Digital / HDMI, Analog / Component Video.
* Audio Input: Digital / HDMI, Analog / RCA Audio L/R, 3.5mm Line In, 3.5mm Microphone In.?Mic In and Line In only can use for component video input, don't support HDMI input)
* Video Output: Digital / HDMI (Pass-through from HDMI or Component).
* Audio Output: Digital / HDMI(Pass-through from HDMI or Audio RCA L/R Input), Analog / 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)
Application Connections with Game Consoles :
* HDMI: WiiU, Xbox 360, Xbox One, PS4
* Component: WiiU, Xbox 360, PS3
Hardware Extra :
* Codec: Hardware MPEG4 encoder
* User Interface: On-board Hot Button for one-click recording / streaming, LED indicator for working sratus.
* Dimension: 110 * 75 * 27 mm
* Weight: 135g
Standards :
* Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
* Input Resolution / Pass-through:
* 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
* Capture Resolution:
* 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
* Record Format: Video / AVI MPEG4, Audio / AAC Stereo
* Record Quality: Max 18Mbps@1080P 30fps
* Record File: Max 2GB/per file
* Record Place: Max 140MB/minute, 8.4GB/hour
* Power Supply: DC 5V 2A

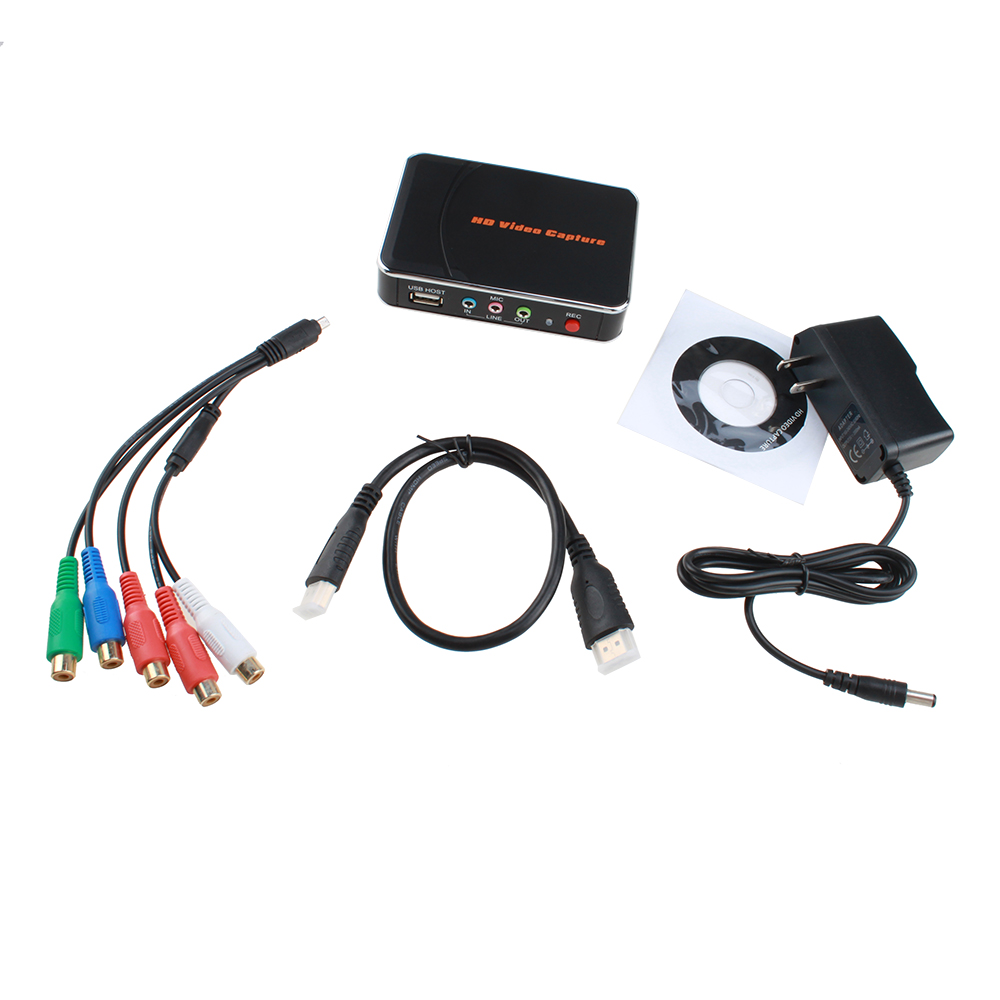

Package Includes :
* 1080P HDMI/YPbPr Recorder
* Component video audio connection cable
* HDMI cable
* Power supply
* Manual
* Video editing software CD
|
