32chs Wireless Transmission Kit Features :
* Built-in with 25mW 32CHs 5.8Ghz transmitter.
* It covers over 100 meters with excellent video and audio.
* Wide view angle lens: 90°or 120° for optional.
* 7V-24V wide working voltage.(Support 2S-6S lipo battery)
* Ultra-light weight, only 7 gram.
* No need troublesome cables connecting, just power it up to use.
Basic Information of: Receiver of 32ch Wireless Transmission Kit
* Display: 5-inch HD screen (800X480pix).
* Wireless Receiving:Built-in 5.8G/ 2.4G/1.2G wireless receiving module.
* Channel Switch:Supports 32 channels, a key to auto scan to lock channel.
* Antenna: Folding SMA antennaassures excellent wireless receiving.
* Recording: Supports seamless cycle and continuous video from wired/wireless cameras
* Photo:Supports function of taking pictures either from wired or wireless cameras.
* AV IN:TV-IN (NTSC / PAL).
* AV OUT:(NTSC / PAL).
* Battery:Built-in 3200mAh high capacity Li-battery.
* Speaker: Built-in speaker of 1W.
* Storage: Supports up to 32GB TF card.
* Language: Supports multi-language.
* Supports Power-saving Mode:automatic shutdown, automatic off-screen.
* Automatic upgrade: Supports system automatic upgrade.

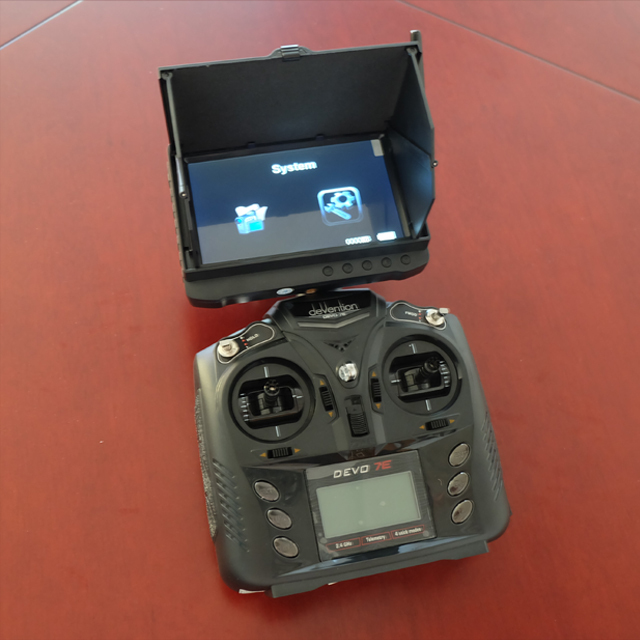

* Sunshade Cover Provided: Screen video can be viewed clearly under sunshine.
* Screw-socket: 1/4 inch standard screw socket.
Camera:
PV
Camera
|
Video
|
Optical Element |
1/3 CMOS Sensor |
| Optical Total Pixels |
520tvl |
| Format |
NTSC/PAL |
| Sensitivity |
0.008Lux/F1.2 |
| Lens & View angle |
0.5mm F1.2 90 °-120° |
| Audio |
Support |
| Dimension |
41mmX 13mmX 13.5mm |
| Transmitter |
Working frequency |
5.8Ghz |
| Working channel |
32 channels |
| RF OUTPUT POWER |
25mw(Real) |
| POWER REQUIREMENT |
7-24V(2S-6S) |
| Antenna |
RP-SMA 3 Blade |

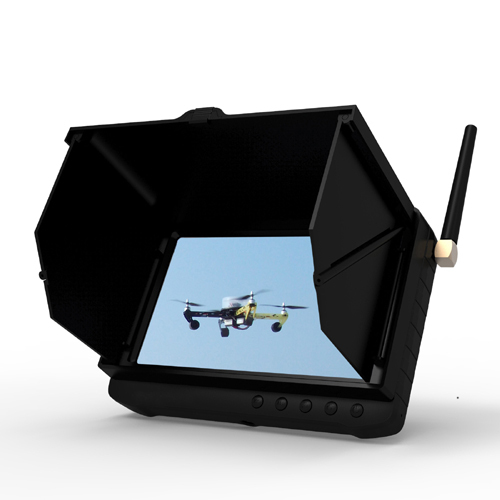

HD 5.8GHz 5inch Wireless Mini Camera DVR Receiver:
| Receiver |
5.8Ghz 32CHS
-92dB |
A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz
A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI
B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz
B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz
C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz
C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz
D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz
D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz
|
| Antenna |
RF-SMA 4 Blade |
| Displayer |
Screen size |
5 inch LCD screen |
| Resolution |
800 X 480 Pixel |
| Contrast |
500:01:00 |
| Brightness |
350 cd/M2 |
| Recorder |
Storage |
TF card 1GB-32GB(optional) |
| Video compress |
MPEG-AVI 30fps |
| Language |
Multiple |
| AV IN |
TV system |
NTSC / PAL (for wired camera) |
| AV-OUT |
Output voltage |
3.6-4.2 V |
| Audio |
Frequency |
20HZ-20KHz stereo |
| Earphone Output |
Left:20MW + right 20mW[16O](suit to largest volume) |
| Speaker |
1W |
| HD 5-inch LCD Screen |
Active area |
108mm(W) x 64.8mm(H) |
| Resolution |
800 x 480 Pixel |
| Luminance for LCM |
200cd/M2 |
| Video |
Resolution |
720*576/720*480 |
| Video compress |
MPEG-AVI 30fps |
| Play format |
MPEG-AVI |
| Photo |
Format |
JPG/JPEG |
| Storage |
External SD card |
TF card 1GB-32GB (optional) |
| 32GB recording time |
10-32 hours |
| 1GB photos |
15625pcs |
| Operating system |
PC |
Windows & Mac OS |
| Port |
USB 2.0 |
| Language |
Multiple |
| Power |
Votage |
DC 5V |
| Current(receiving mode) |
600MA |
| Current(recording mode) |
680MA |
| Current( recording with off-screen mode) |
340MA |
| AC adapter |
DC 5V 2A |
| Built-in battery |
Li-battery 3200Mah |
| Standby time |
Wireless record |
≥9.5 hours(off-screen); |
| Wired record |
≥12 hours(off-screen); |
| Sunshade |
one button open |
Patend LCD hood |
| Size(LxWxH) |
Without sunshade |
131 x 90.5 x 18mm |
| With sunshade |
131 x 90.5 x 28mm |
| Weight |
Without sunshade |
215G |
| with sunshade |
260G |
package:
* 1 x FPV DVR
* 1 x usb cable
* 1 x AC adapter
* 1 x AV-IN cable
* 1 x AV-out cable
* 1 x wireless camera
* 1 x AC adapter
* 1 x User manual |
