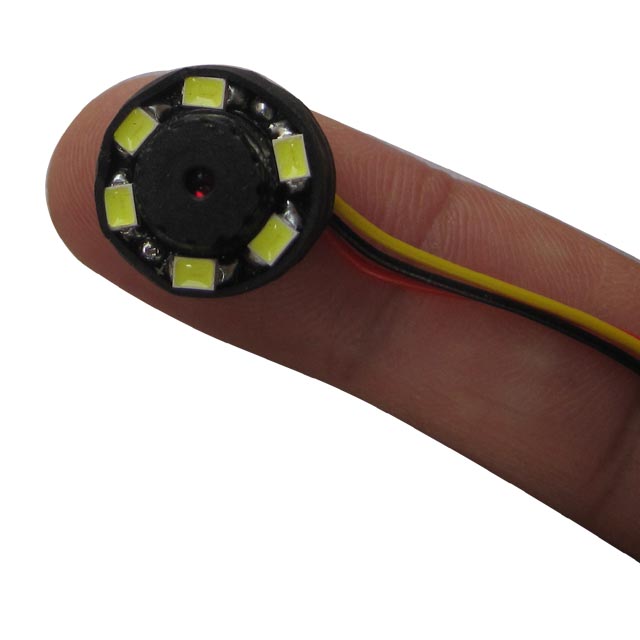

Audio 0.0Lux 520TVL 1/3 CMOS 6 LEDs Mini CCTV Camera

Audio 0.0Lux 520TVL 1/3 CMOS 6 LEDs Mini CCTV Camera
Condition:New
Model:SPY6520LED

List price:

Your price:



Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

Features:
It's a ultra small  high definition CCTV camera with excellent night vision.
Size is 14.5 x 14.5 x 15.5mm  only, Weight is 3g! Very easy to install.
Minimum illumination is 0.0lux, which can view clearly in complete darkness.
Full TV system. Applicable worldwide.

Audio 0.0Lux 520TVL 1/3 CMOS 6 LEDs Mini CCTV Camera
Audio 0.0Lux 520TVL 1/3 CMOS 6 LEDs Mini CCTV Camera
Audio 0.0Lux 520TVL 1/3 CMOS 6 LEDs Mini CCTV Camera

Specification :

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)492(V) PAL:786(H)576(V)
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm(H)3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2 : 1 Interlace
SENSITIVITY 0.00Lux/5M (LED OPEN)
LENS & VIEW ANGLE 0.5mm F2.0 / 55
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT 1/60 S TO 1/100000 S OUT 1/50 S TO 1/100000S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
SIZE (L x D) 14.5 x 14.5 x 15.5mm
WEIGHT 3g
WORK CURRENT LED on 200mA
POWER REQUIREMENT DC 5.0V
OPERATING TEMPERATURE - 10 C ~ +50C , less than 90% RH
Connection PIN1 Red DC5V PIN2 Black GND PIN3 Yellow VIDEO OUT

Contents:
1 * Mini camera;
1 * RCA/BNC cable;
1 * AC adapter .
