32CHs Wireless Transmission Kit Features:
* All-in-one 32CHs mini wireless transmitter
* Built-in with 25mW 32CHs 5.8Ghz transmitter.
* It covers over 100 meters with excellent video and audio.
* Wide view angle lens: 90¡ãor 120¡ã for optional.
* 7V-24V wide working voltage.(Support 2S-6S lipo battery)
* Ultra-light weight, only 7 gram.
* No need troublesome cables connecting, just power it up to use.

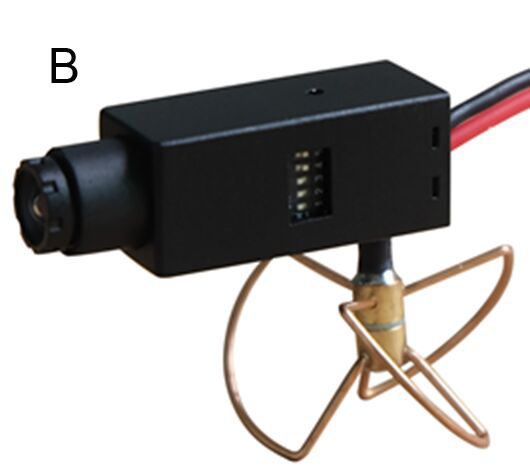

Note: there are have three model cameras : A model, B model , C model. If no mark ,default model A .
Specifications:
|
No. |
Item |
Specifications |
Unit |
Test Condition |
|
Min. |
Typ. |
Max. |
|
RF Output Characteristic |
|
1 |
Tx Power |
13 |
14 |
15 |
dBm |
|
|
2 |
Audio subcarrier Level |
-26 |
-28 |
-30 |
dBc |
A/V (Video and Audio Index) |
|
3 |
AL
(Audio Subcarrier Freq. NCY) |
6470 |
6500 |
6530 |
KHz |
|
Camera Characteristics |
|
1 |
PICK UP ELEMENT |
Single chip 1/4CMOS |
|
2 |
NUMBER OF PIXEL |
NTSC: 720(H)¡Á480(V)PAL: 720(H)¡Á576(V) |
|
3 |
HORIZONTAL RESOLUTION |
Approximately 520TV Lines |
|
4 |
SENSITIVITY |
0.008Lux/F1.2 |
|
5 |
LENS & VIEW ANGLE |
0.5mm F1.2 90 ¡ã/0.5mm F3.0 120¡ã |
|
No. |
Item |
Specifications |
Unit |
Test Condition |
|
Min. |
Typ. |
Max. |
Audio Characteristics |
|
1 |
Freq Responsez |
120-3400Hz |
|
2 |
SNR |
78db |
|
DC Characteristics |
|
1 |
Supply Voltage |
7V |
12V |
24V |
VDC |
|
|
2 |
Current sddd(( sConsumption |
|
88 |
|
mA |
|
|
Dimension |
|
1 |
Size(LWH) |
41mmX 13mmX 13.5mm |
|
2 |
Weight |
TE93A/B :10g TE93C:7g |
|
3 |
Temperature |
-10¡æ ~ +60¡æ |
|
4 |
Connection |
PIN1-> Red DC5V PIN2-> Black GND |
|
