It adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities. Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg),small size, wireless transmission, tiny weight( 10g), continuous working(AV power supply),  and easy installation . It is a good helper for home monitoring and burglar.

Features:

1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;
2. 16 channels available, users can freely choose one when they use it;
3. 0.008LUX super low illumination, which can see clearly under dim light;
5. 90deg broad view angle
6. Low power consumption assures the long time working life;
7. 25mW transmitting power, which leads 100 meters wireless transmission range.

Use Method:

Connect it with power supply, it starts to work. At the same time, power on wireless receiver and choose corresponding channel to receive/record real time audio & video.

SPECIFICATIONS:

Working frequency	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CCH7: 5745MHz; CH8: 5725MHz CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
Audio Subcarrirer Level	-28dBc
RF OUTPUT POWER	25mW
TRANSMISSION RANGE	100 meters
Audio Subcarrirer Freq.ncy	6.5MHz
SENSOR DIMENSION	NTSC: 720(H)×480(V)	PAL: 720(H)×576(V)
SENSITIVITY	0.008Lux/F1.2
LENS & VIEW ANGLE	0.5mm F1.2 / 90 °

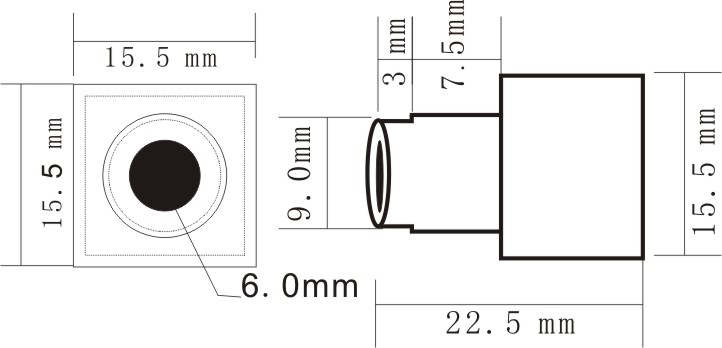

SIZE(L x W x H)	22.5 x 15.5 x 15.5 MM
WEIGHT(g)	10g
WORK CURRENT	230mA
POWER REQUIREMENT	DC 4V
OPERATING TEMPERATURE	- 20°C ~ + 50°C , Relative humidity 85%

MODEL NO. & FREQUENCY:

wireless camera						5.8G wireless DVR

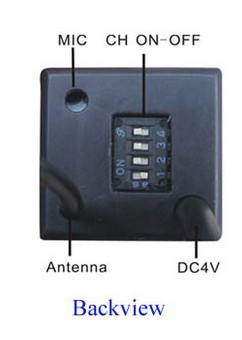

Channel Switcher				CH	Frequency	Freq. group	CH
1# ON	2# ON	3# ON	4# ON	CH1	5865MHz	5.8G-A	CH1
1# ON	2# OFF	3# ON	4# ON	CH2	5845MHz	5.8G-A	CH2
1# ON	2# ON	3# OFF	4# ON	CH3	5825MHz	5.8G-A	CH3
1# ON	2# OFF	3# OFF	4# ON	CH4	5805MHz	5.8G-A	CH4
1# ON	2# ON	3# ON	4# OFF	CH5	5785MHz	5.8G-A	CH5
1# ON	2# OFF	3# ON	4# OFF	CH6	5765MHz	5.8G-A	CH6
1# ON	2# ON	3# OFF	4# OFF	CH7	5745MHz	5.8G-A	CH7
1# ON	2# OFF	3# OFF	4# OFF	CH8	5725MHz	5.8G-A	CH8
1# OFF	2# ON	3# ON	4# ON	CH9	5705MHz	5.8G-B	CH1
1# OFF	2# OFF	3# ON	4# ON	CH10	5685MHz	5.8G-B	CH2
1# OFF	2# ON	3# OFF	4# ON	CH11	5665MHz	5.8G-B	CH3
1# OFF	2# OFF	3# OFF	4# ON	CH12	5645MHz	5.8G-B	CH4
1# OFF	2# ON	3# ON	4# OFF	CH13	5885MHz	5.8G-B	CH5
1# OFF	2# OFF	3# ON	4# OFF	CH14	5905MHz	5.8G-B	CH6
1# OFF	2# ON	3# OFF	4# OFF	CH15	5925MHz	5.8G-B	CH7
1# OFF	2# OFF	3# OFF	4# OFF	CH16	5945MHz	5.8G-B	CH8
