Key Features:
* Monolayer aluminum sell install easily and quickly, can dissipate heat more sufficiently. Black inner shell makes sharper monitor
* Be compatible with common cassette mechanism of camera, like SONY, HITACHI, LG and other famous brands with high resolution
* Running smoothly with low speed, subwoofer noise and no image dithering
* 64 preset positions.
* 1 Patrol tracking routs and 1 auto level scan routs.
* Variable rotation（pan 0 ～ 80º/s ;tilt 0 ～ 40º/s）.
* Continuous 360 º rotations in Omni-directions with no fade zone; Rotation speed can be adjusted by tilting angle of the joystick
* Auto flips with vertical 180 º in Omni-directions, no fade zone.
* RS485 integrated various of protocols, PELCO-D, PELCO-P etc
* 3 class lightning defend, built in 3000V lightning proof, surge resistant
| Image sensor |
1/4" SONY CCD |
| Power supply |
AC24V |
| Power consumption |
≤20W |
| Synchronization |
Internal |
| White balance |
Auto/Manual |
| Active Pixels |
500 (Level) * 582 (Tilt) |
| Lens |
F=3.3mm-99mm |
| Video output |
BNC1.0VP-P75 |
| Min Illumination |
0.1Lux |
| Focal length |
F=3.25~88mm |
| Iris & Zoom |
Auto/Manual |
| Zoom Function |
27X optic zoom and 12X digital zoom |
| Pan rotation range |
360° continuously, 0.1°~80°/s |
| Title rotation range |
90°(180° auto flip) , 0.1°~ 140°/s |
| Control method |
RS485 |
| Protocol |
Pelco-P/D etc. |
| Baud rate |
2400bps/4800bps/9600bps/19200bps |
| Present points |
64 |
| Work temperature |
0°C - 50 °C |

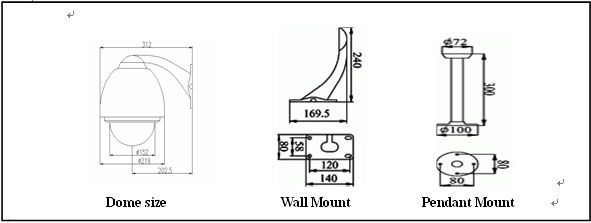

| Installation |
Wall, Pendant |
| Packing Dimension |
L310mm*W290mm*H420mm |
| Weight |
Wall Mount: 5.05kg Pendant Mount: 5.00kg | |
