1) high speed dome PTZ camera
2) 1/4 inch SONY SUPER HAD CCD
3) Auto day&night color&B/W
4) CE, FCC etc
5) All-metal;IP66

Key Feature:
1.Fast installation structure design, can install easily and quickly; Double layer of Die-cast aluminum shell and three fans design, can dissipate heat more sufficiently black inner shell, can monitor much sharper.
2.Built in OSD menu and support inputting with Chinese or English; Display or set parameter via menu.
3.Auto-identify various SONY, HITACHI, LG, CNB, SAMSUNG, YOKO, etc, and auto read camera model when power on.
4.The first designer of wide voltage in domestic, DC12V~AC24V, no need to identify “+” or “-”.
5.Soft address design can alter long-distance ID address code, no need manual dial-up.
6.Show and Edit title function containing 20 English letter, can independently set the titles for camera itself Preset Position, Patten Scan, Auto-level Scan and Zone display.
7.Auto flip with vertical 180° in omni-directions, no fade zone
8.200 preset positions and titles can be set.
9.4 patrol tracking routes, every can insert 32 spots
10.4 patterns scan routes and continuous track record of 1000 in action, time of up to 10 minutes；
11.4 auto level scan routes with left & right spacing. Speed can be set.
12.Position-indicating function, temperature indicator function (Celsius / Fahrenheit simultaneous display), information display, information inquiry function；
13.8 dynamic privacy zone can be setup.
14.8 display zones with editable title.
15.Alarm system with 4input and 2 output channel and support the linkage ( recall preset and various of scan mode. Tracking. Pattern. Auto-level scan)
16.Auto activation at fixed time, and can auto execute different scans and presets after a given leisure time.
17.RS485 control, integrated various of protocols, PELCO-D, PELCO-P, KALATEL, AD, PHILIPS, SAE, VCL etc..
18.Built-in temperature-controlled heating system and the speed fan
19.3 class lightning defend, built in 3000V lightning proof, surge resistant.
20.IP 66 outer cover with all day protection.

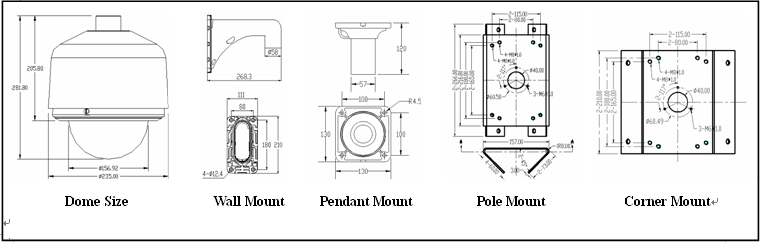

External Dimension:

Power input	DC12V~AC24V (±10%)
Power consumption	Indoor≤12W,outdoor≤45W
Image sensor	1/4 inch SONY SUPER HAD CCD
Signal mode	PAL/NTSC
Preset position	200 presets, title settable
Accuracy	±0.1º
Pan rotation range	360°Continuous Rotation, 0.5°-240°/S
Tilt rotation range	90°Vertical, 180°Auto flip, 0.5°-220°/S
Control method	RS485/Mancherster/BI-PHASE code
Protocol	Pelco-P/D,AD,PHILIPS etc
Working temperature	Indoor:0ºC ~ 50ºC,Outdoor:-40ºC ~60ºC
Ambient humidity	0-95%Non-condensing
Shell material	Aluminum
Installation	Wall, Pendant, Pole, Corner
