SDI Encoding Cctv Board Camera Module Compate SONY And VISCA Protocol

SDI Encoding Cctv Board Camera Module Compate SONY And VISCA Protocol
Condition:New
Model:SONY-HD-SDI

List price:

Your price:



Description and Application :

Mini HD SDI encoding control board of SONY HD camera module, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410,FCB-EH3310,FCB-EH3150,FCB-EH6300,FCB-EH6500,FCB-EV7500,FCB-EV5500,FCB-EV7100,FCB-EV7300 , FCB-EV7310,FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.

Advantage:

The SDI mini control board single 4 military grade PCB Board, covered in gold, Tin, avoiding cold solder joint. Selection of solid brass SMA connectors, ARM processors, foreign imported chips brand capacitors resistors and other electronic components, and eye-diagram test-enable HD-SDI signals

Specification:

1.access through LVDS line SONY FCB HD integrated core modules without any settings to the movement, it can automatically identify displays HD-SDI and 3G-SDI IP signals.
2.Through five-way key, or 485 control keyboard to bring up the OSD menu, easy to set the technical parameters of the core module and save the parameter value.
3.Support RS485 control, automatic identification of PELCO-D,PELCO-P agreement, Potter is 2400bps,4800bps,9600bps, address is 1--255. .
4.Support power off memory function, when a camera module parameter setting saved, after the power of the camera module, no need to set the parameters of the camera module.
5.Unique video formats change, who cannot see the image display, video format can be changed to 720P50,1080/50,1080P50/P60, 485 remote control keyboard can also be changing the video format.
6. Unique 10 presets and auto cruise function, cruising time of 5----999 seconds. (Optional).
7.Support for SONY, VISCA Protocol of camera module.
8.Size:48MM*48MM*5MM (Does not contain the height of the SMA connector)

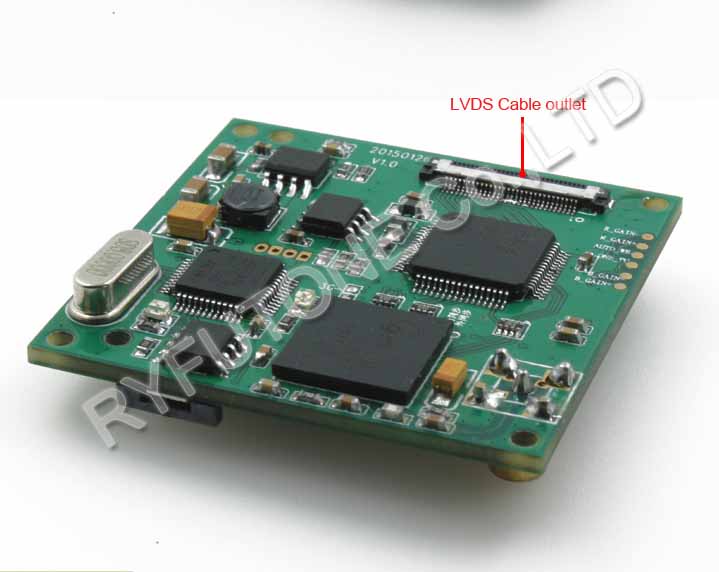

SDI Encoding Cctv Board Camera Module Compate SONY And VISCA Protocol For SONY FCB HD Camera Module

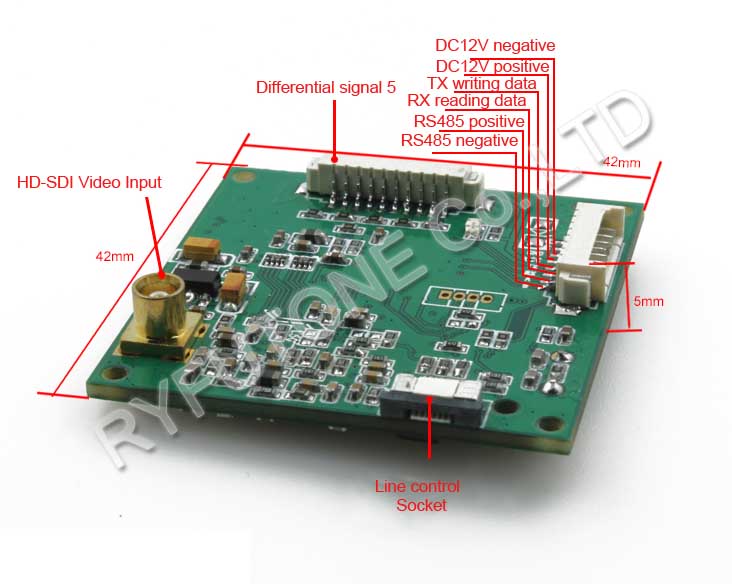

SDI Encoding Cctv Board Camera Module Compate SONY And VISCA Protocol For SONY FCB HD Camera Module

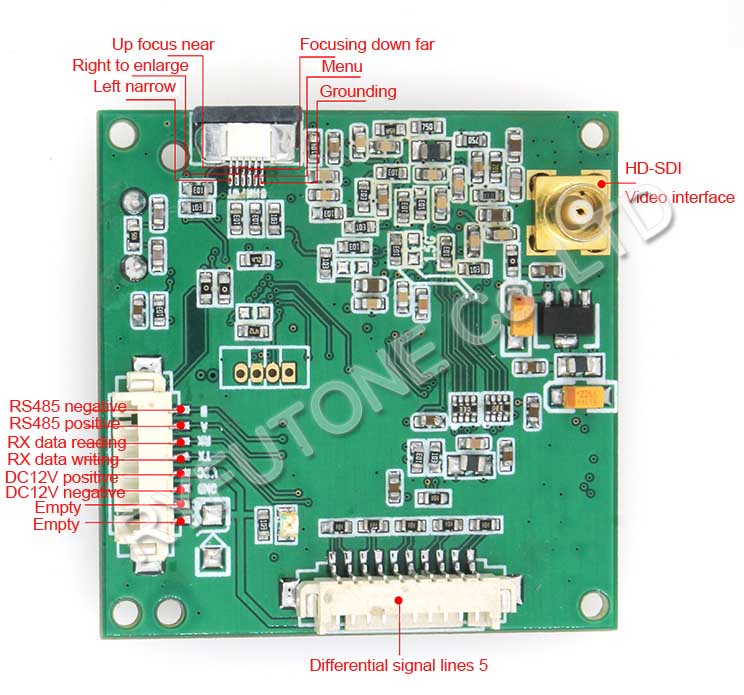

SDI Encoding Cctv Board Camera Module Compate SONY And VISCA Protocol For SONY FCB HD Camera Module
