Advantage:

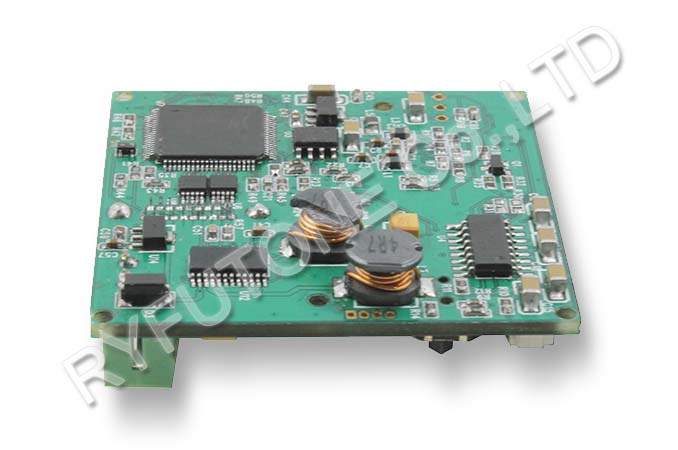

This control board single 4 military grade PCB Board, covered in gold, Tin, avoiding cold solder joint. High quality HDMI interface, ARM processors, imported foreign brand chips and capacitors resistors and other electronic components

Description:

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design, and is compatible with SONY FCB-EH3410,FCB-EH3310,FCB-EH3150,FCB-EH6300,FCB-EH6500,FCB-EV7500,FCB-EV5500,FCB-EV7100,FCB-EV7300 , FCB-EV7310,FCB-EV5300 and so on. This widely used control panels, can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.

Specification:

1.access through LVDS line SONY FCB HD integrated core modules without any settings to the movement, it can automatically identify displays HD signals.
2.Through five-way key, or 485 control keyboard to bring up the OSD menu, easy to set the technical parameters of the core module and save the parameter value.
3.Support RS485 control, automatic identification of PELCO-D,PELCO-P agreement, Potter is 2400bps,4800bps,9600bps, add is 1--255. .
4.Support power off memory function, when a camera module parameter setting saved, after the power of the camera module, no need to set the parameters of the camera module.
5.Unique video formats change, who cannot see the image display, video format can be changed to 720P50,1080/50,1080P50/P60, 485 remote control keyboard can also be changing the video format.
6. Unique 10 presets and auto cruise function, cruising time of 5----999 seconds. (Optional).
7.Support for SONY, VISCA Protocol of camera module.

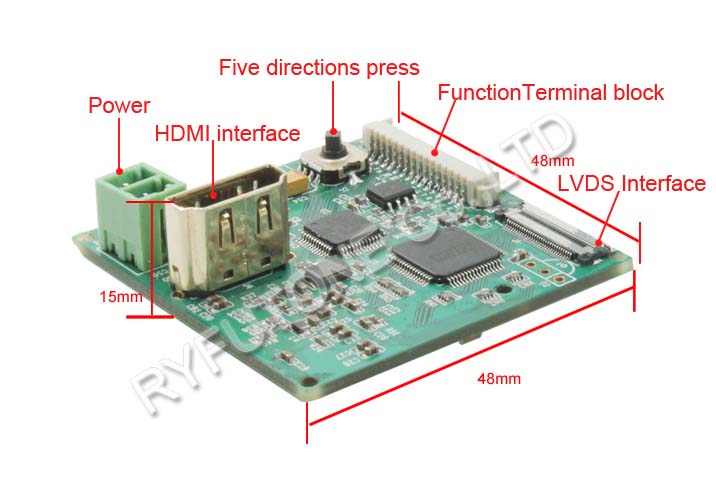

8. Size:48MM*48MM*15MM
